Wall Mounted Electric Boiler MS-6 ZZ Style

Electric boiler for heating and home hot water High efficiency wall-hung electric boiler Energy efficient wall mounted electric boiler and gas boiler Heating, boiler, water heater boiler

Keyword：

Wall Mounted Electric Boiler MS-6 ZZ Style

electric boiler floor heating

wall mounted electric boiler

china gas boiler factory

32kw gas boiler

gas water heaters

water heater gas boiler for heating

italian gas combi boiler

wall-hung gas boiler China Manufacturer

China Manufacturer Wall Mounted Boiler

wall hung combi gas boiler

natural gas boiler gas combi boiler

Categories：

Product Center

Wall Mounted Electric Boiler

Hotline：

+86-187-69742570

Product Inquiry

Related Products

Products Description

Wall mounted electric boiler

MS-6 Functional Features

1. Segmented timeing function

As needed to control the heating and set multiple time-periods.

2. Temperature adjustable function

The water temperature is 20 ℃ to 85 ℃ can adjust, set the temperature difference (5 ℃ ~ 20 ℃) in order to meet the different needs of different customers.

3. Intelligent constant temperature

Halt machine to heat preservation after the water temperature reaches the setting , the temperature drops at the lowest of its setting, customised heating again, always maintain constant temperature state.

4. Water pump running temperature setting

Electric boiler is equipped with the special power switch of circulating pump, according to the set temperature control of circulating pump turned on and off.

5. High temperature protection function

High temperature probe, autostop heating if the water temperature is over 95℃ degrees .

6. Low temperature anti freezing protection

Heating starts when water temperature is detected to be below 3℃, autostopping heating when the water temperature rises to 8℃ .

7. Multiple protection function

With multiple protection functions against water shortage, short circuit, power leakage, phase failure and overcurrent, for safer functioning.

8. Fault prompt functions

In the event of a fault in the electric boiler, the display will automatically indicate the type of fault..

Frequency conversion controller

▶Flexible and convenient control,
▶Cloud heating technology, water and electricity isolation,
▶Equipped with an over-temperature alarm and power-off protection device.
▶Frequency conversion pulse width adjustment, constant power, silent work,
▶Built-in temperature measuring device, six-speed automatic adjustment makes the outlet water temperature more stable and prolongs the service life

Three-dimensional aluminum die-casting heating element

▶Fast heat conduction, no scaling
▶Pressure and corrosion resistance, frost resistance and temperature resistance
▶Long life, antibacterial and antibacterial
▶Water separation

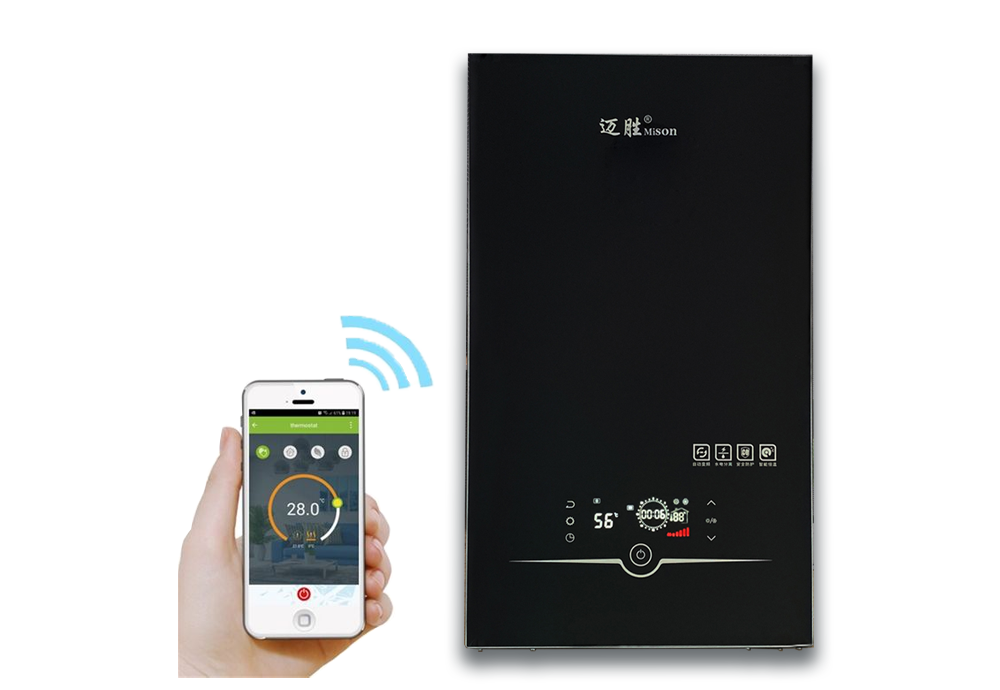

WIFI remote intelligent control system
▶Connect the mobile phone to WIFI to remotely control the switch and adjust the temperature of the wall-hung boiler.
▶Winter and summer mode setting
▶Working mode setting,
▶Multi-segment timing setting
▶Operation alarm detection function.

Specification

Product Technical Parameters
Name	Unit	Dual-Purpose Wall Mounted Electric Boiler
Rated Power	KW	6.1	8	10	12	16	20	24	32
Rated Current	A	9.3	12	15.2	18.3	24.3	30.3	110	48.5
Switch	A	≧40	≧40	≧63	≧63	≧80	≧120	≧160	≧200
Electricity Meter	A	≧40	≧40	≧63	≧63	≧80	≧120	≧160	≧200
Rated Voltage/HZ	V/Hz	380/50
Heat Power	Kal	5246	6880	8600	10320	13760	17200	20640	27520
Thermal Efficiency	98%
Thermal Water Yield	Kg/min	3.5	5	6	7	9	10	12	16
Using Pressure	Mpa	0.1-0.3
Heating Outlets	DN20
Heating Inlets	DN20
Hot Water Output	DN15
Cold Water Input	DN15
Set Temperature	℃	30-85
Protection Grade	IPX4D
Power Consumption	H/°	6.1	8	10	12	16	20	24	32
Heating Area	㎡	40-60	60-80	80-100	100-120	140-160	160-180	180-220	260-300
Product Size	mm	700×410×252
