Condensing heating wall hanging gas boiler MS-4
Keyword：
Condensing heating wall hanging gas boiler MS-4
residential electric boilers
gas boiler
wall mounted methane gas boiler
Wall Mounted Heating Boiler
Home Heating Water Boiler
Hermetic Boilers Gas Combi Boiler
Categories：
Products Description
MS-4 Features
●Large LCD screen display and highly senstive touch control design
●Quietly working envieronment (≦40db)
●All stainless steel material, no welding points and strong durability
●Italy import 316 stainless steel heat exchanger and burner
●Imported Grundfos energy-saving pumps
●SIT high-precision gas proportional valve
●High configuration: WIFI intelligent remote operation
●Full premix 360° combustion technology
● Energy saving and environmental protection
●Thermal efficiency up to 109%
 |

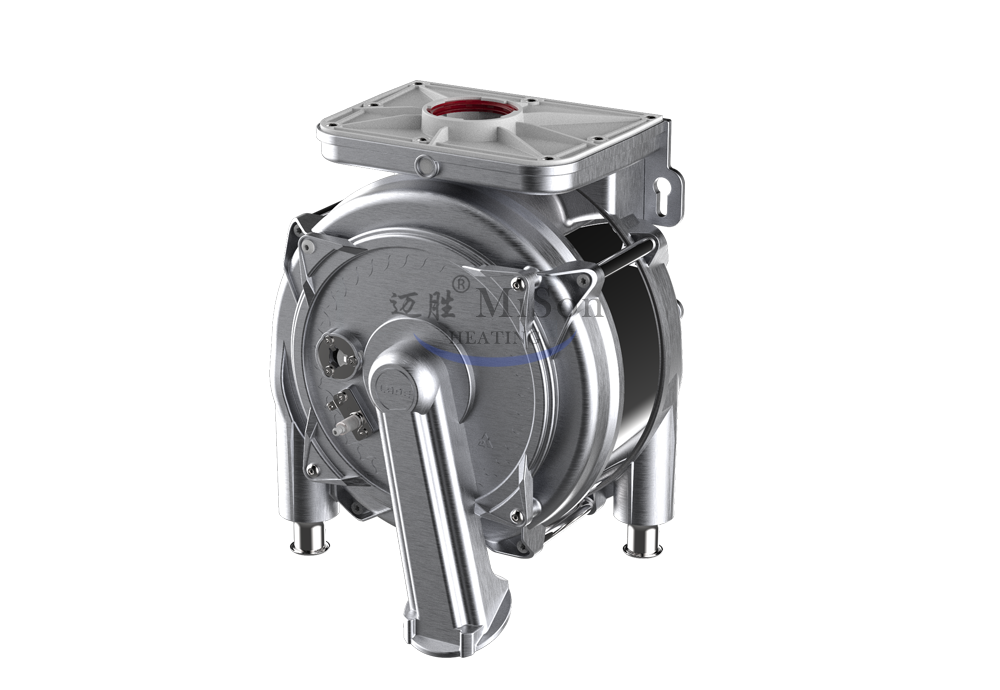

Fully premixed condensing heat exchanger
▶ Use premixed combustion technology to reduce nitrogen oxide emissions and be more environmentally friendly
▶ Condensation technology is used to reduce the latent heat loss of water vapor and achieve higher thermal efficiency
|
Italy SIT DC frequency conversion fan
▶The speed can be adjusted according to the actual load, and the operation is quiet and energy-saving.
|
 |
 |
Grundfos energy saving pumps ▶Reliability: MADE of high quality materials to ensure that the pump can be maintained for a long time. ▶Adjustable speed: with high speed, medium speed and low speed three speed, pump high speed operation can be conducive to the gas in the system, low speed pump operation can effectively reduce energy consumption, thereby reducing costs. ▶Low noise: It can run stably and low noise for a long time.
|

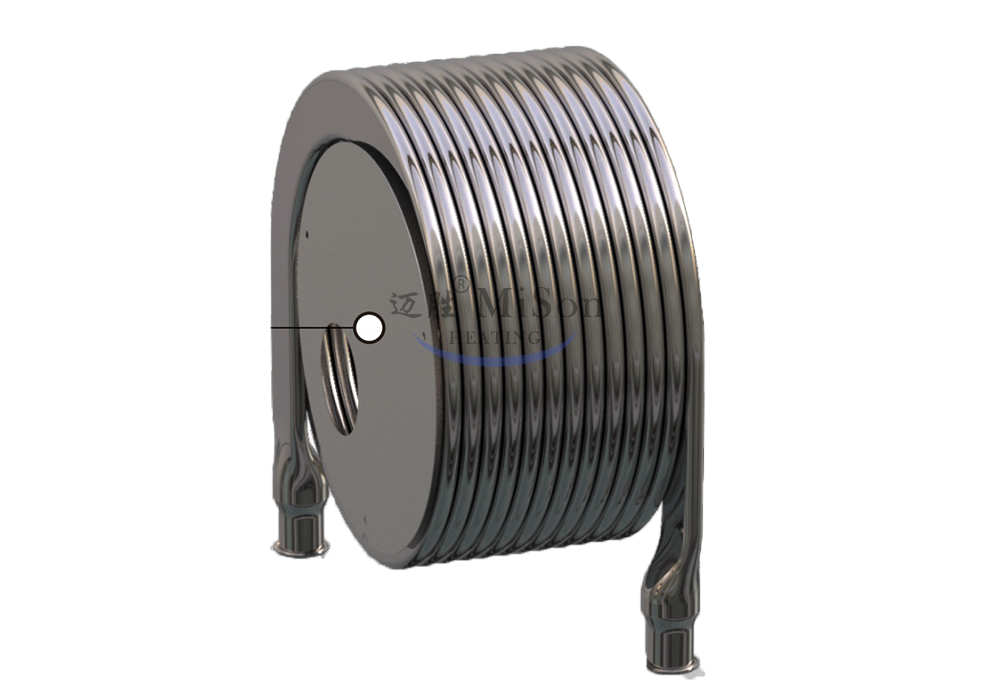

Condensing heat exchange coil▶The condensing heat exchange coil adopts the "hydrogen reduction solid solution heat treatment" technology to reduce metal elements and improve the resistance to deformation and corrosion. ▶The ingenious design of the flue gas channel partition effectively prevents the hidden danger of the furnace flameout caused by the return air of the exhaust pipe, and makes the high-temperature flue gas evenly pass through the gap of the coil during combustion. ▶Flat spiral coil design, when the high-temperature flue gas passes through the narrow gap between the tube layers, strong turbulent flow is generated, which greatly improves the convective heat transfer efficiency |
 |
Specification
|
Name |
Wall-Mounted Gas Boiler |
||||
|
Standard |
GB25034-2010 GB20665-2015 |
||||
|
Model |
L1PB24 |
L1PB28 |
L1PB32 |
L1PB40 |
|
|
Gas Type |
Natural gas, methane,coal bed gas, light hydrocarbon |
||||
|
Rated Gas Pressure |
2000Pa |
||||
|
Working Gas Pressure |
1500-3000Pa |
||||
|
Gas flow(m³/h) |
2.4 |
2.8 |
3.2 |
4 |
|
|
Rated Max.Heat Input(KW) |
24 |
28 |
32 |
40 |
|
|
Rated Max.Heat Output(KW) |
21 |
25.2 |
28.8 |
36 |
|
|
Min. Heat Input(KW) |
9.6 |
11.2 |
12 |
16 |
|
|
Min. Heat Output(KW) |
8.6 |
10 |
11 |
14.2 |
|
|
Rated Power(W) |
120 |
140 |
140 |
140 |
|
|
Voltage/Frequency |
220v/50hz |
||||
|
Heating reference area(㎡) |
130 |
160 |
190 |
260 |
|
|
Heating |
Working Water Pressure |
|
|
0.3Mpa |
|
|
Max Temperature |
|
|
80℃ |
|
|
|
Systerm temperature range |
|
|
30℃-80℃ |
|
|
|
Expansion tank (L) |
6 |
8 |
8 |
10 |
|
|
Heating temperature |
|
|
30℃-50℃ |
|
|
|
Hot water |
Setting Temperature Range |
|
|
30℃-65℃ |
|
|
output rate of hot water |
(△t=30k) |
(△t=30k) |
△ |
(△t=30k) |
|
|
Min. start-up flow |
|
|
3L/Min |
|
|
|
Working Water Pressure |
|
|
0.05-0.8Mpa |
|
|
|
Heating Input/Output |
|
|
G3/4” |
|
|
|
Hot water Input/Output |
|
|
G1/2” |
|
|
|
Gas Input |
|
|
G3/4” |
|
|
|
Product Dimensions(mm) |
740x400x310 |
740x460x310 |
740x510x310 |
740x550x310 |
|
|
Weight(kg) |
34 |
36 |
39 |
42 |
|
|
Exhaust pipe(mm) |
|
|
⊘60mmx100mm |
|
|
|
Appliance and Water protection grade |
|
|
1Px4D |
|
|
