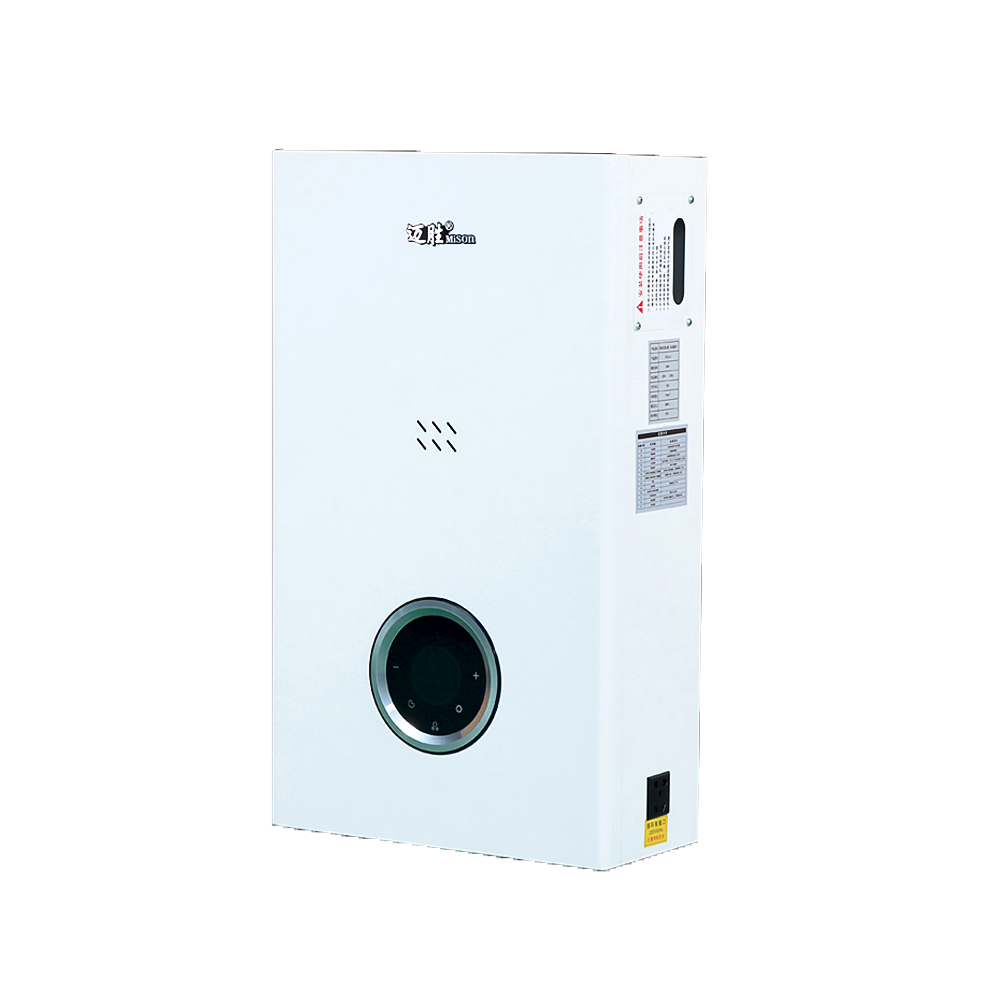

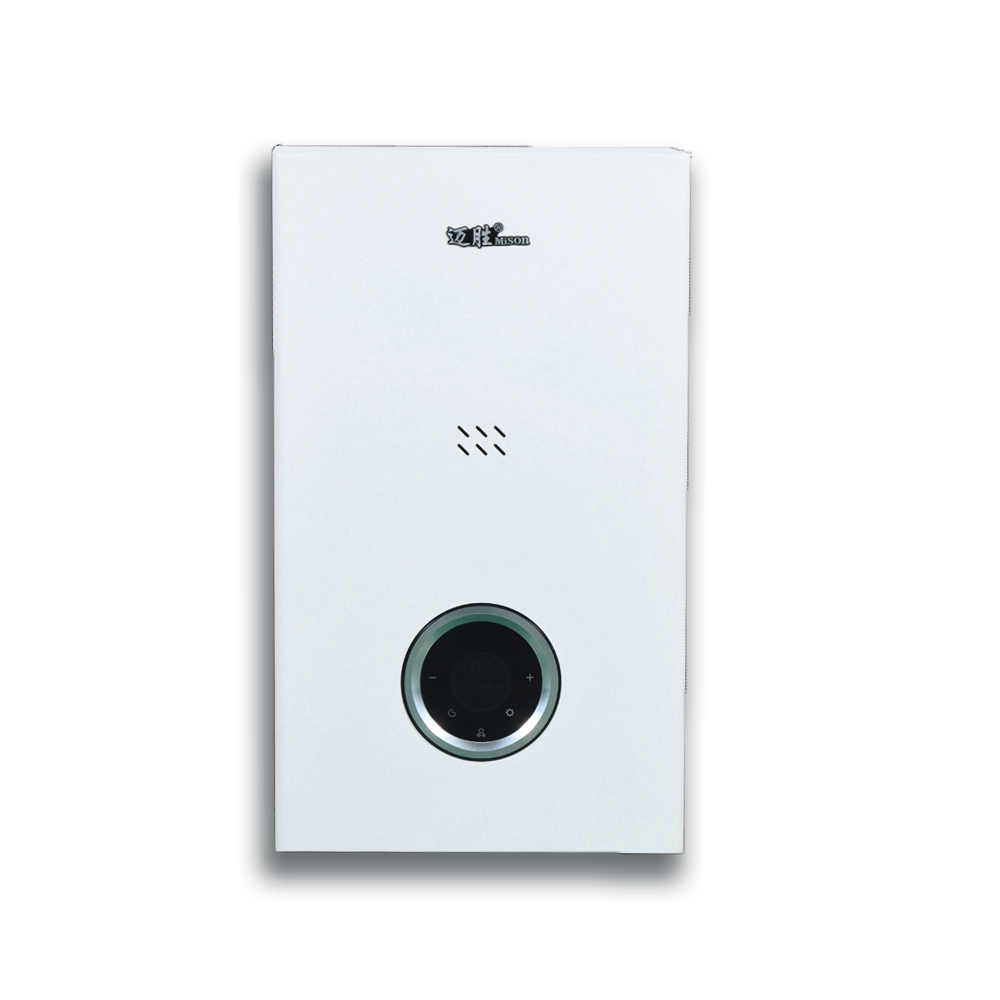

Wall Mounted Electric Boiler MS-6 ZS Style

Electric boiler for heating and home hot water. China manufacture supply high quality boiler, with products parts of China famous brands. Smart remote control


Electric Micromine Heat-Zhishang Style

wall hung gas combination boiler

instant gas boiler

mini wall mounted gas boiler

home gas boiler

heating wall hung gas boiler room heating thermostat

Gas Wall-hung Boiler 20kw

Ng Gas Water Heater Boiler

Products Description

MS-6 Functional Features

 Segmented timeing function

As needed to control the heating and set multiple time-periods.

 Temperature adjustable function

The water temperature is 20 ℃ to 85 ℃ can adjust, set the temperature difference (5 ℃ ~ 20 ℃) in order to meet the different needs of different customers.

Intelligent constant temperature

Halt machine to heat preservation after the water temperature reaches the setting , the temperature drops at the lowest of its setting, customised heating again, always maintain constant temperature state.

 Water pump running temperature setting

Electric boiler is equipped with the special power switch of circulating pump, according to the set temperature control of circulating pump turned on and off.

 High temperature protection function

High temperature probe, autostop heating if the water temperature is over 95℃ degrees .

 Low temperature anti freezing protection

Heating starts when water temperature is detected to be below 3, autostopping heating when the water temperature rises to 8 .

 Multiple protection function

With multiple protection functions against water shortage, short circuit, power leakage, phase failure and overcurrent, for safer functioning.

Fault prompt functions

In the event of a fault in the electric boiler, the display will automatically indicate the type of fault..

Frequency conversion controller

▶Flexible and convenient control,
▶Cloud heating technology, water and electricity isolation,
▶Equipped with an over-temperature alarm and power-off protection device.
▶Frequency conversion pulse width adjustment, constant power, silent work,
▶Built-in temperature measuring device, six-speed automatic adjustment makes the outlet water temperature more stable and prolongs the service life

Three-dimensional aluminum die-casting heating element

▶Fast heat conduction, no scaling
▶Pressure and corrosion resistance, frost resistance and temperature resistance
▶Long life, antibacterial and antibacterial
▶Water separation

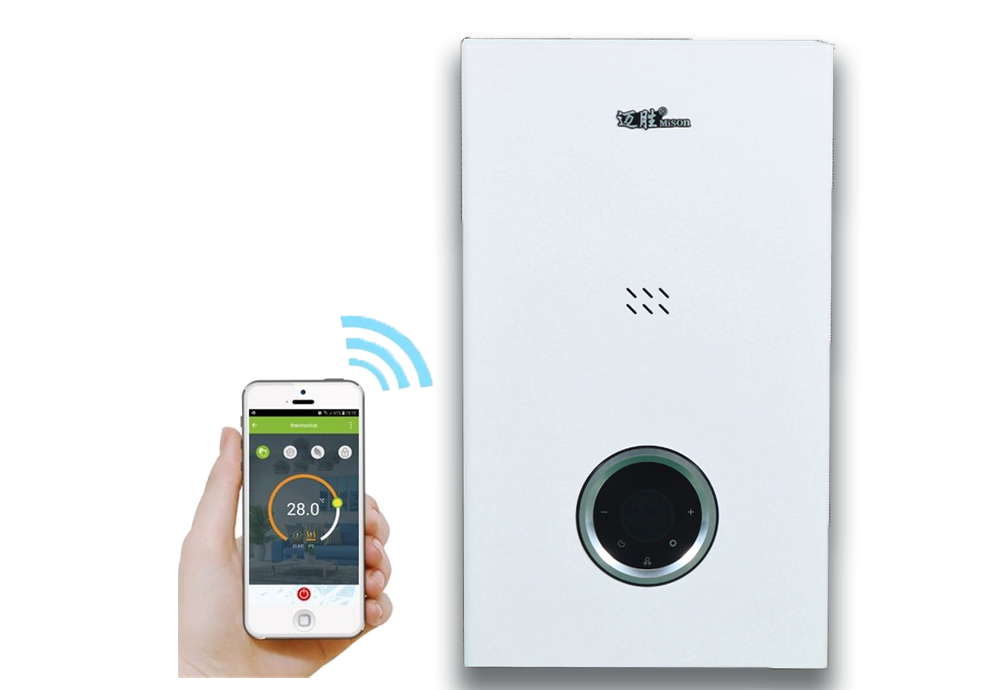

WIFI remote intelligent control system
▶Connect the mobile phone to WIFI to remotely control the switch and adjust the temperature of the wall-hung boiler.
▶Winter and summer mode setting
▶Working mode setting,
▶Multi-segment timing setting
▶Operation alarm detection function.


Product Technical Parameters
Name Unit Dual-Purpose Wall Mounted Electric Boiler
Rated Power KW 6.1 8 10 12 16 20 24 32
Rated Current A 9.3 12 15.2 18.3 24.3 30.3 110 48.5
Switch A ≧40 ≧40 ≧63 ≧63 ≧80 ≧120 ≧160 ≧200
Electricity Meter A ≧40 ≧40 ≧63 ≧63 ≧80 ≧120 ≧160 ≧200
Rated Voltage/HZ V/Hz 380/50
Heat Power Kal 5246 6880 8600 10320 13760 17200 20640 27520
Thermal Efficiency 98%
Thermal Water Yield Kg/min 3.5 5 6 7 9 10 12 16
Using Pressure Mpa 0.1-0.3
Heating Outlets DN20
Heating Inlets DN20
Hot Water Output DN15
Cold Water Input DN15
Set Temperature 30-85
Protection Grade IPX4D
Power Consumption H/° 6.1 8 10 12 16 20 24 32
Heating Area 40-60 60-80 80-100 100-120 140-160 160-180 180-220 260-300
Product Size mm 700×410×252


What is an electric boiler?

Electric boilers are also called electric heating boilers and electric heating boilers. As the name suggests, it uses electricity as energy and converts it into heat energy, and then converts it through the boiler to output steam, high-temperature water or organic heat carrier with a certain amount of heat energy. The electric hot water boiler is a fully automatic environmental protection boiler that uses advanced electric heating technology and control system to produce hot water and meet the needs of heating or supplying hot water for living and bathing.

The heating methods of electric boilers include electromagnetic induction heating method and resistance (electric heating tube) PTC ceramic semiconductor heating method. The resistance heating method is divided into stainless steel heating tube electric boiler and ceramic heating tube electric boiler. Tubular electric heating elements are used for heating, and oxide semiconductor ceramic sheets are used for semiconductor type, and water and electricity are completely separated.

Electric boilers are easy to superimpose and combine in structure, flexible in control, higher in safety factor, and convenient in maintenance and replacement.

Electric hot water boilers are also called electric heating boilers, electric heating boilers, electric heating boilers, electric bath boilers, electric bath boilers, etc. These boilers are widely used in hotels, villas, factories, office buildings, government agencies, colleges and universities, hospitals Domestic hot water and heating in places with high appearance requirements such as troops and troops.


What is an electric heating furnace?

Electric heating furnace, also known as electric heating furnace, the full name is electric heating boiler, the term is electric hot water boiler, which belongs to a kind of electric boiler. Electric heating boiler is a kind of heating equipment that converts electric energy into heat energy and directly releases heat or circulates heat medium in heating pipes to meet heating needs. It belongs to the category of electric hot water boilers.

According to different heating tubes, electric heating boilers can be divided into ceramic heating tube electric heating boilers and stainless steel heating tube electric heating boilers. According to whether they are pressure-bearing, they can be divided into atmospheric pressure electric heating boilers and pressure-bearing electric heating boilers. The use needs to be supervised by the technical supervision department, and it is not as safe as atmospheric electric heating boilers, so more and more units and families choose electric heating boilers.


What is the difference between electric heating furnace and electric boiler?

The distinction between electric heating furnace and electric boiler. The similarities between the electric heating furnace and the electric boiler are that electricity is used as the energy source, and the electric energy is efficiently converted into heat energy through circulating water as the medium.

The difference between electric heating furnaces and electric boilers is that electric heating furnaces are only used in the heating industry, and their volume and power are relatively small; while electric boilers are not only used in large-scale heating industries, but also in other industries that require hot water. The power and volume of electric boilers for general industrial or large-scale heating purposes are relatively large.

Household electric boilers have the same functions as household electric heating furnaces. Household electric boilers are generally smaller in size and power, and the plug-in is more beautiful.

Multiple electric heating furnaces can be combined and operated in parallel, which can also realize the use of large electric boilers.
