MS-1 (natural gas, artificial gas, biogas, light hydrocarbon gas) wall mounted boiler

Nature gas wall mounted boiler for home heating, hotel heating, commercial gas boiler and industrial gas boiler.

Keyword：

wall hung gas boiler

constant gas boiler

water heater electric instant

commercial water heater

gas boiler for home heating 26kw

wall mounted combi gas boiler

Categories：

Hotline：

Products Description

MS-1 Features

●Samrt controller

●China famous brand heat exchangers, burners and gas proportional valve

●Stainless steel smoke exhaust pipe

●Thermal efficiency up to 92%, Tier 2 energy consumption

	Main board controller of gas wall-mounted furnace ▶Atmospheric combustion scheme design ▶Compatible with 220V AC, DC high pressure gas valve ▶Multiple failure, antifreeze, temperature,life protection mechanism ▶PID automatically adapts to hot water fast constant temperature algorithm ▶Built-in igniter design, ion flame detection system ▶Compatible with water pressure detection sensors
High performance fan ▶The fan shell is made of aluminum shell. ▶High performance ball bearings, low noise operation
	Energy-saving heat exchanger ▶Copper heat exchangers have strong thermal conductivity. ▶Thermal efficiency over 90%. ▶Efficient anti-corrosion treatment for extended service life.

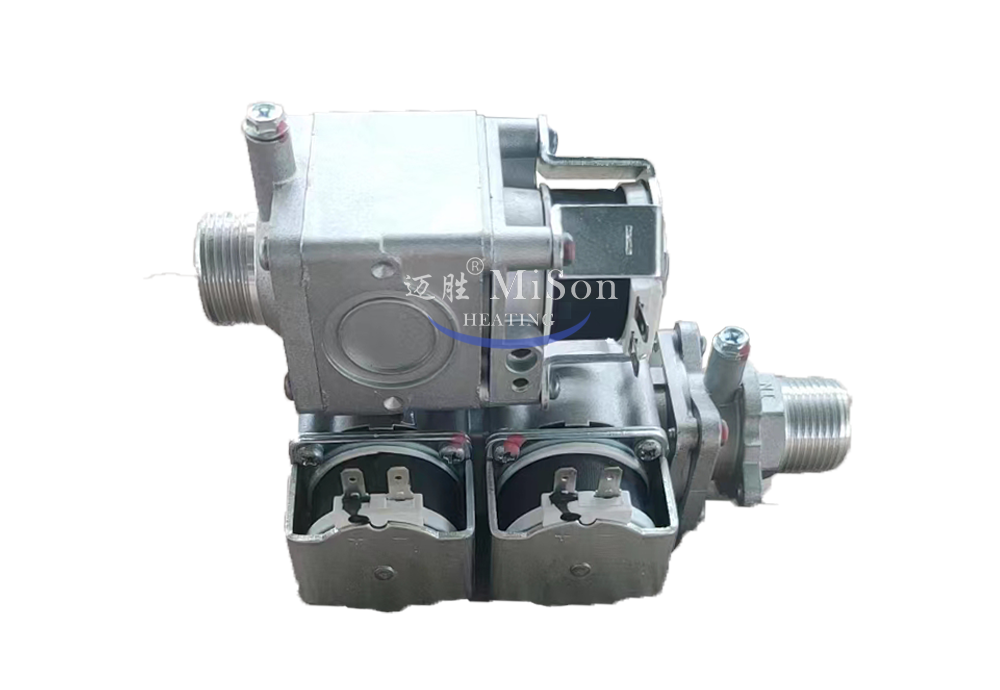

Top precision proportional valve ▶Good sealing, corrosion resistance, durable. ▶Safe and reliable Large wire package, high power, strong pulling force. ▶Good heat dissipation, durable, high temperature resistance.
	Wall-Hung Gas Boiler Burner ▶406 Stainless steel ▶Resistant to corrosion ▶Not easily oxidized ▶Long service life
Domestic famous brand: nine and air pressure switch ▶Ensure that the equipment can close the gas channel in time when the exhaust air is not smooth, so as to avoid gas leakage and protect personal safety.

Specification

Name		Wall-Mounted Gas Heating Water Boiler
Standard		GB25034-2010 GB20665-2015
Model		L1PB20	L1PB24	L1PB26	L1PB28	L1PB30	L1PB32	L1PB36	L1PB40
Gas Type		NG
Rated Gas Pressure		2000Pa
Working Gas Pressure		1500-3000Pa
Gas flow(m³/h)		2	2.4	2.6	2.8	3	3.2	3.6	4
Rated Max.Heat Input(KW)		20	24	26	28	30	32	36	40
Rated Max.Heat Output(KW)		18	21	23.4	25.2	27	28.8	32.4	36
Min. Heat Input(KW)		8	9.6	10.3	11.2	12	12	14.4	16
Min. Heat Output(KW)		7.2	8.6	9	10	10.8	11	13	14.2
Rated Power(W)		120	120	120	140	140	140	140	140
Voltage/Frequency		220v/50hz
Heating reference area(㎡)		100	130	150	160	170	190	220	260
Heating system	Working Water Pressure	0.3Mpa
	Max Temperature	80℃
	Systerm temperature range	30℃-80℃
	Expansion tank (L)	6	6	6	8	8	8	10	10
	Heating temperature setting range	30℃-50℃
Hot water	Setting Temperature Range	30℃-65℃
	output rate of hot water	(△t=30k)	(△t=30k)	(△t=30k)	(△t=30k)	(△t=30k)	△	(△t=30k)	(△t=30k)
	Min. start-up flow	3L/Min
	Working Water Pressure	0.05-0.8Mpa
Heating Input/Output		G3/4”
Hot water Input/Output		G1/2”
Gas Input		G3/4”

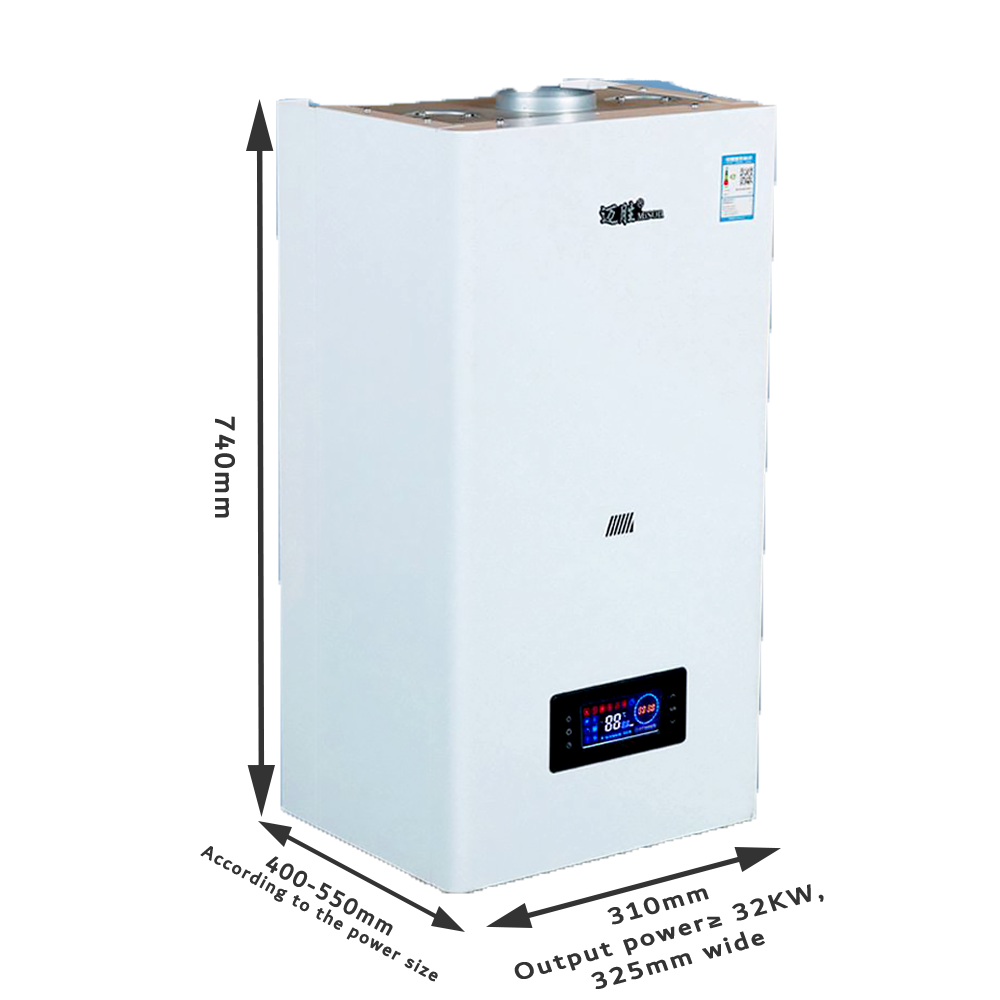

Product Dimensions(mm)		740x400x310	740x400x310	740x460x310	740x460x310	740x460x310	740x510x310	740x550x310	740x550x310
Weight(kg)		33	34	35	36	38	39	40	42
Exhaust pipe(mm)		⊘60mmx100mm
Appliance and Water protection grade		1Px4D
