Products Description

MS-2 Features：

●WIFI smart contral, Efficient large LCD screen display, touch operation.

●Multiple security protections for safer use.

●Full combustion, full heat exchange, reasonable control.

●Thermal efficiency of more than 90%, energy saving of more than 20%.

●High configuration, long service life and low failure

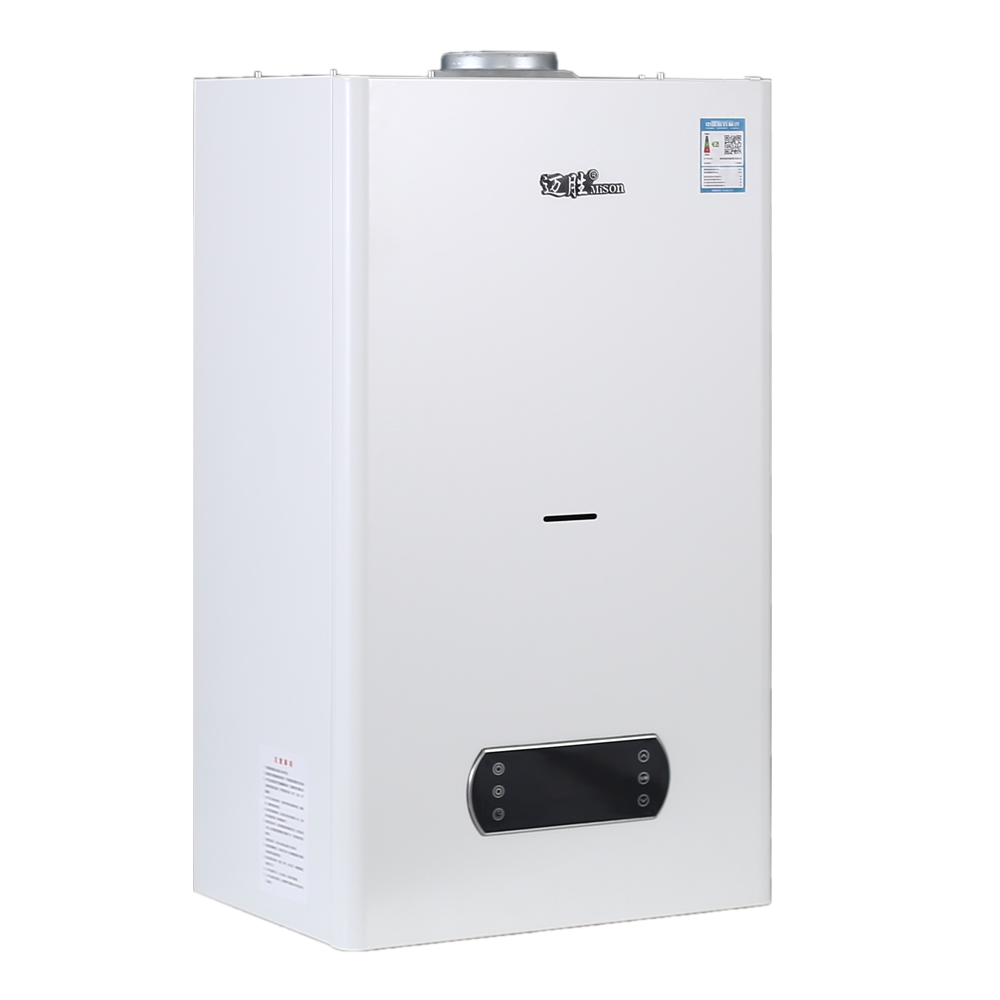

The simple controls, backlit LCD display, pressure gauge, time clock and intuitive button layout make it easy to manage warmth and comfort to your home.

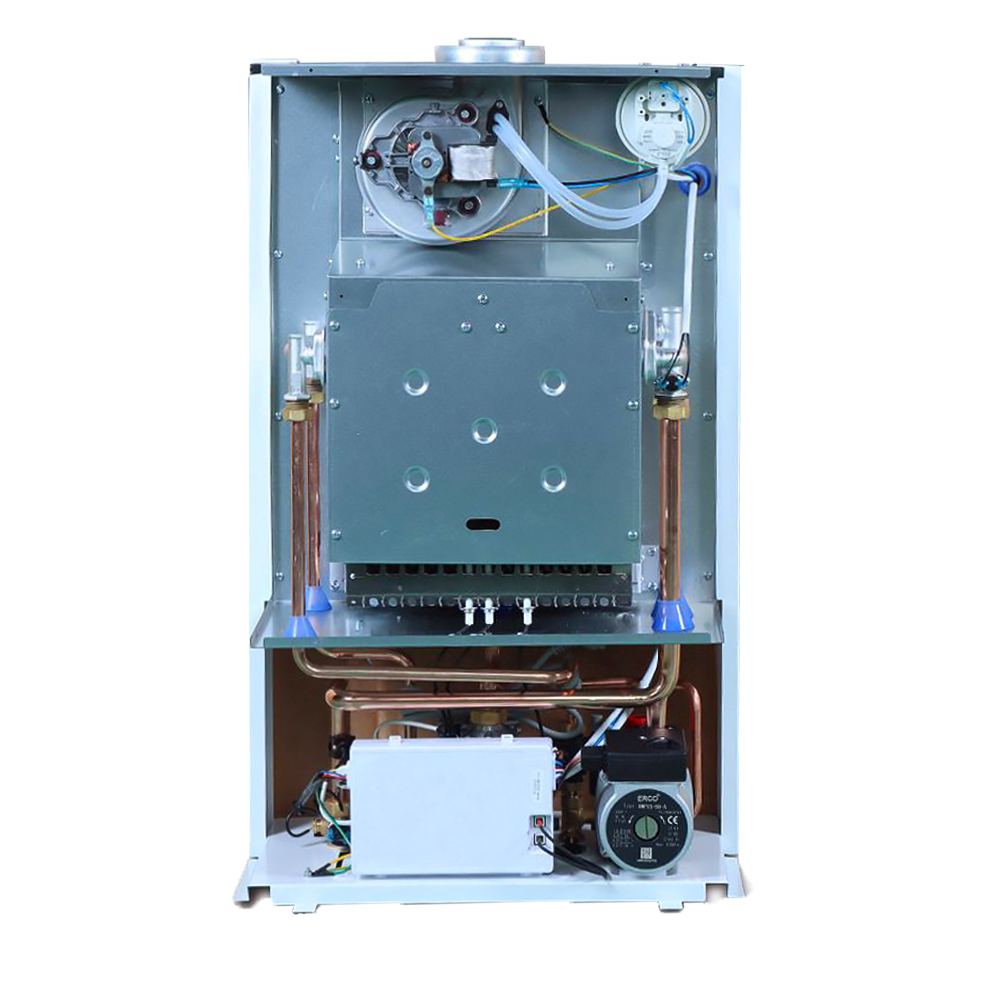

	▶Atmospheric combustion scheme design ▶Compatible with 220V AC, DC high pressure gas valve ▶Multiple failure, antifreeze, temperature,life protection mechanism ▶PID automatically adapts to hot water fast constant temperature algorithm ▶Built-in igniter design, ion flame detection system ▶Compatible with water pressure detection sensors
High performance fan ▶The fan shell is made of aluminum shell. ▶High performance ball bearings, low noise operation
	▶Energy-saving heat exchanger. ▶Copper heat exchangers have strong thermal conductivity. ▶Thermal efficiency over 90%. ▶Efficient anti-corrosion treatment for extended service life.
▶Good sealing, corrosion resistance, durable. ▶Safe and reliable Large wire package, high power, strong pulling force. ▶Good heat dissipation, durable, high temperature resistance.
	▶406 Stainless steel ▶Resistant to corrosion ▶Not easily oxidized ▶Long service life
▶Domestic famous brand: nine and air pressure switch ▶Ensure that the equipment can close the gas channel in time when the exhaust air is not smooth, so as to avoid gas leakage and protect personal safety.

Specification:

Standard		GB25034-2010 GB20665-2015
Model		L1PB20	L1PB24	L1PB26
Gas Type		NG
Rated Gas Pressure		2000Pa
Working Gas Pressure		1500-3000Pa
Gas flow(m³/h)		2	2.4	2.6
Rated Max.Heat Input(KW)		20	24	26
Rated Max.Heat Output(KW)		18	21	23.4
Min. Heat Input(KW)		8	9.6	10.3
Min. Heat Output(KW)		7.2	8.6	9
Rated Power(W)		120	120	120
Voltage/Frequency		220v/50hz
Heating reference area(m2)		100	130	150
Heating system	Working Water Pressure	0.3Mpa
	Max Temperature	80℃
	Systerm temperature range	30℃-80℃
	Expansion tank (L)	6	6	6
	Heating temperature setting range	30℃-50℃
Hot water	Setting Temperature Range	30℃-65℃
	output rate of hot water	(△t=30k)	(△t=30k)	(△t=30k)
	Min. start-up flow	3L/Min
	Working Water Pressure	0.05-0.8Mpa
Heating Input/Output		G3/4”
Hot water Input/Output		G1/2”
Gas Input		G3/4”
Product Dimensions(mm)		740x400x310	740x400x310	740x460x310
Weight(kg)		33	34	35
Exhaust pipe(mm)		⊘60mmx100mm
Appliance and Water protection grade		IPX4D

Installation Diagram
