Wall Mounted Gas Boiler MS-3
Keyword：
Wall Mounted Gas Boiler MS-3
gas boiler
gas boiler for floor heating and hot water
Categories：
Products Description
MS-3 Features
●Samrt controller
●China famous brand heat exchangers, burners and gas proportional valve
●Stainless steel smoke exhaust pipe
●Thermal efficiency up to 92%, Tier 2 energy consumption
 |

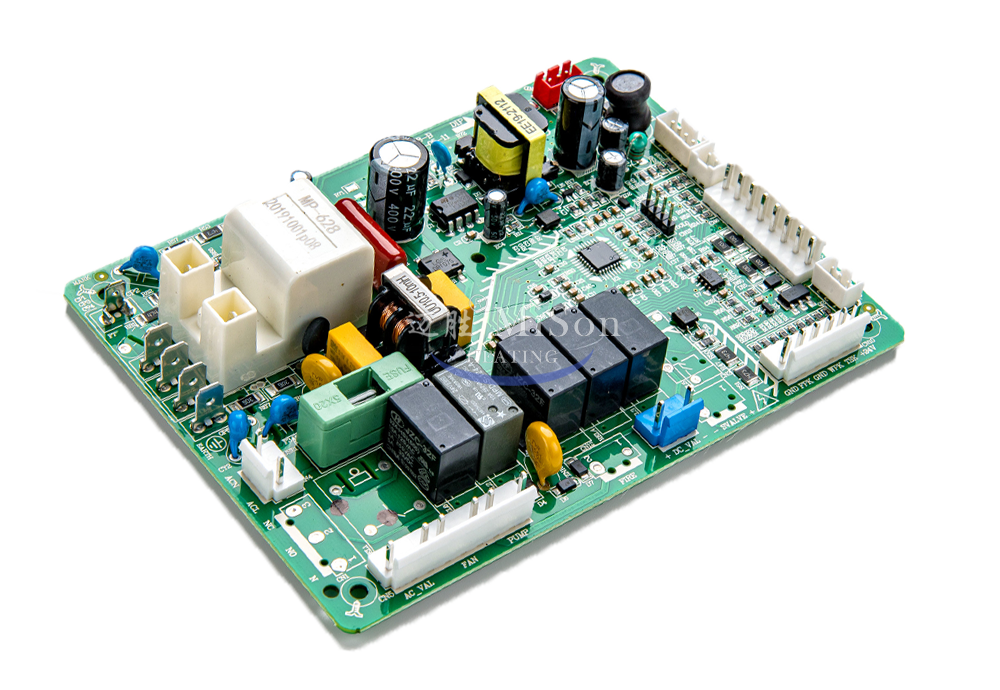

▶Atmospheric combustion scheme design ▶Compatible with 220V/380V AC, DC high pressure gas valve ▶Multiple failure, antifreeze, temperature,life protection mechanism ▶PID automatically adapts to hot water fast constant temperature algorithm ▶Built-in igniter design, ion flame detection system ▶Compatible with water pressure detection sensors |
|
▶The fan shell is made of aluminum shell. ▶High performance ball bearings, low noise operation
|
 |
 |

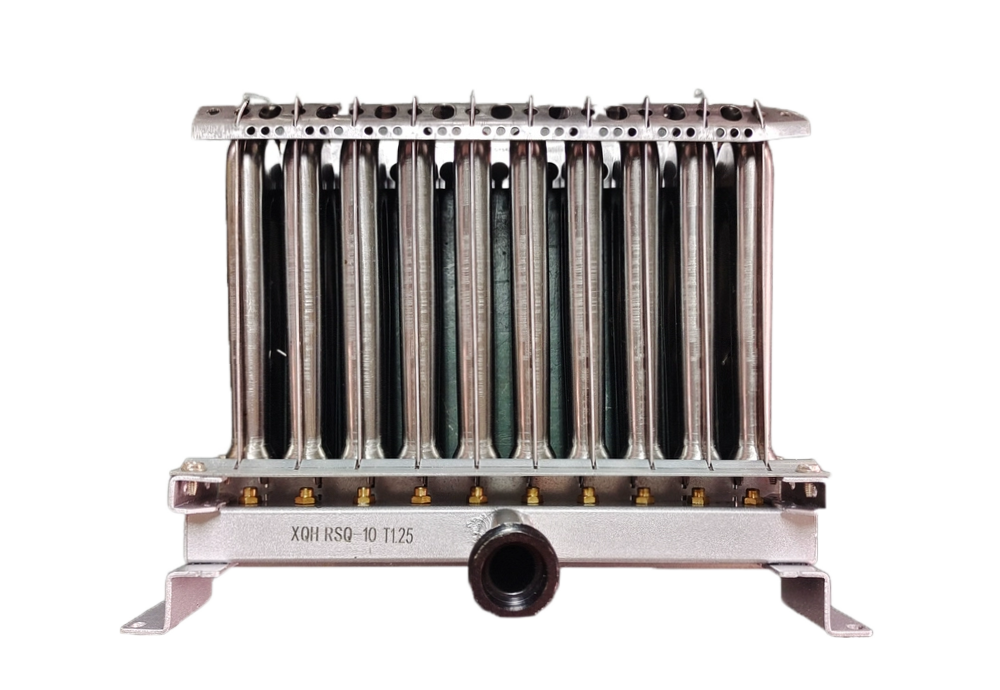

▶Energy-saving heat exchanger. ▶Copper heat exchangers have strong thermal conductivity. ▶Thermal efficiency over 90%. ▶Efficient anti-corrosion treatment for extended service life.
|
|

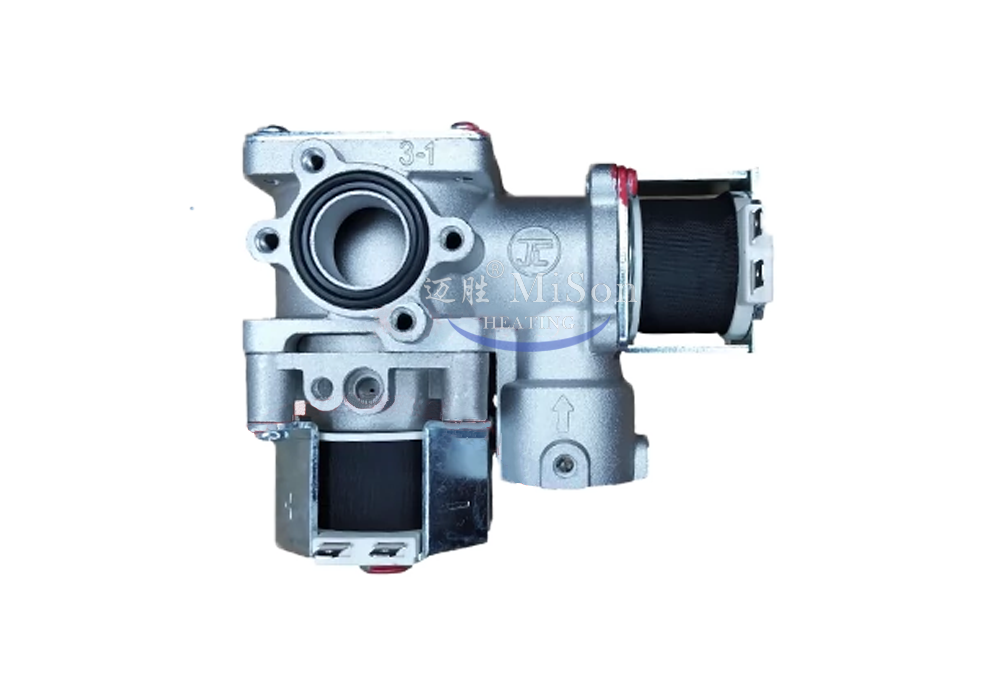

▶High precision: the proportional valve can precisely control the flow of gas according to the needs, so as to realize precise combustion regulation. ▶Energy saving: The proportional valve can adjust the gas flow as needed, and the thermal efficiency can reach 92%. ▶Good stability: The proportional valve can adjust the opening of the valve according to the needs, so as to maintain the stability of combustion. |
 |
 |
▶406 Stainless steel ▶Resistant to corrosion ▶Not easily oxidized ▶Long service life
|
|
▶Domestic famous brand: nine and air pressure switch ▶Ensure that the equipment can close the gas channel in time when the exhaust air is not smooth, so as to avoid gas leakage and protect personal safety. |
 |
Specification
|
Name |
Unit |
Volume 13L |
Volume 16L |
|
Gas Sources |
|
Liquefied petroleum gas Natural Gas |
Liquefied petroleum gas Natural Gas |
|
Rated Gas Pressure |
Pa |
2800 2000 |
2800 2000 |
|
Rated heat load |
KW |
25 |
30 |
|
Rated Min.Heat Load |
KW |
5.0 |
5.5 |
|
Applicable water pressure |
MPa |
0.01-0.8 |
0.01-0.8 |
|
Rated Hot Water Capacity △T=25K |
Kg/Min |
13 |
16 |
|
Starting Mode |
|
Delayed electric pulse ignition |
|
|
Product Size(L*W*H) |
mm |
550x350x140 or 590x350x140 |
|
|
Power |
|
a.c220V /380V 50Hz |
|
|
Rated Power |
W |
40 |
40 |
|
Gas Pipe |
mm |
Φ15mm (G1/2”) |
Φ15mm (G1/2”) |
|
Cold/Hot Pipe |
|
Φ15mm (G1/2”) |
Φ15mm (G1/2”) |
|
Exhaust Pipe Size |
mm |
Φ60mmx100mm |
|
|
Appliance and Water protection grade |
IPx4D |
||
Structure
