Gas Wall Mounted boiler MS-11C

Wifi remote control boiler, gas boiler, electric boiler, wall mounted gas boiler, wall mounted electric boiler. Large LCD screen display, boiler for heating and domestic hot water ,double functions. Termal efficiency up to 92%.

Keyword：

Gas Wall Mounted boiler MS-11C

gas boiler wall mounted

wall mounted gas boiler

electric wall mounted boiler

wifi smart control gas boiler

Categories：

Product Center

Wall Mounted Gas Boiler Series

Hotline：

+86-187-69742570

Product Inquiry

Related Products

Products Description

MS-11C Features

●Large LCD screen display and highly senstive touch control design

●Home heating and domestic hot water

●Imported Grundfos energy-saving pumps

●Top brand high precision proportional valve in China

●All aluminum super quiet blower, aluminum smoke pipe

●Thermal efficiency up to 92%, Tier 2 energy consumption

●High configuration: WIFI intelligent remote operation

	Grundfos energy saving pumps ▶Reliability: MADE of high quality materials to ensure that the pump can be maintained for a long time. ▶Adjustable speed: with high speed, medium speed and low speed three speed, pump high speed operation can be conducive to the gas in the system, low speed pump operation can effectively reduce energy consumption, thereby reducing costs. ▶Low noise: It can run stably and low noise for a long time.
WIFI remote intelligent control system ▶Connect the mobile phone to WIFI to remotely control the switch and adjust the temperature of the wall-hung boiler. ▶Winter and summer mode setting ▶Working mode setting, ▶Multi-segment timing setting ▶Operation alarm detection function

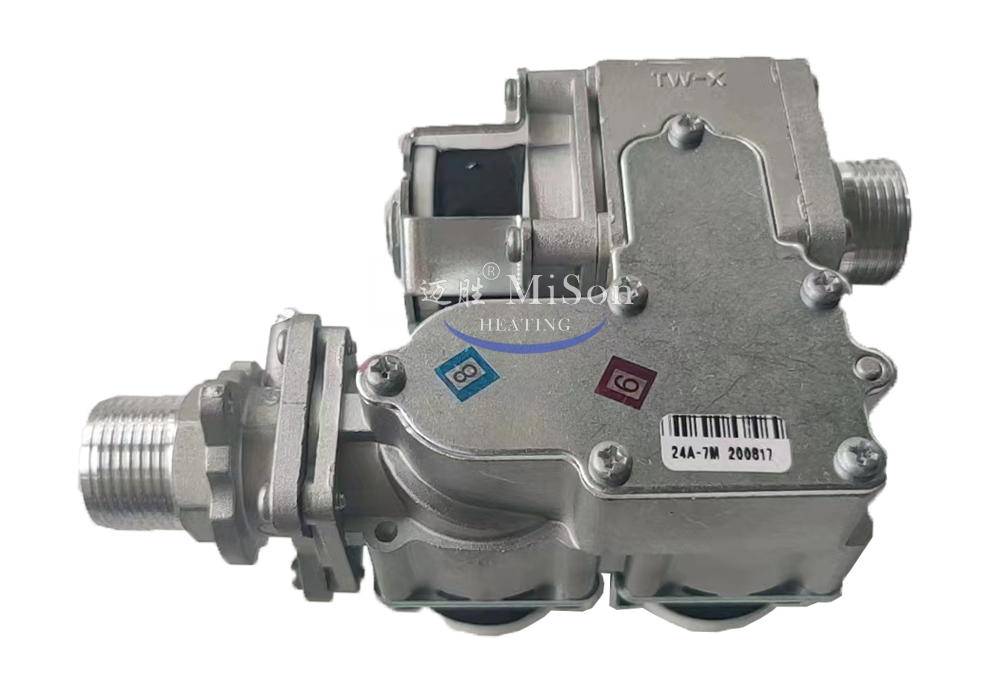

	Top high precision proportional valve ▶Good sealing, corrosion resistance, durable. ▶Safe and reliable Large wire package, high power, strong pulling force. ▶Good heat dissipation, durable, high temperature resistance.

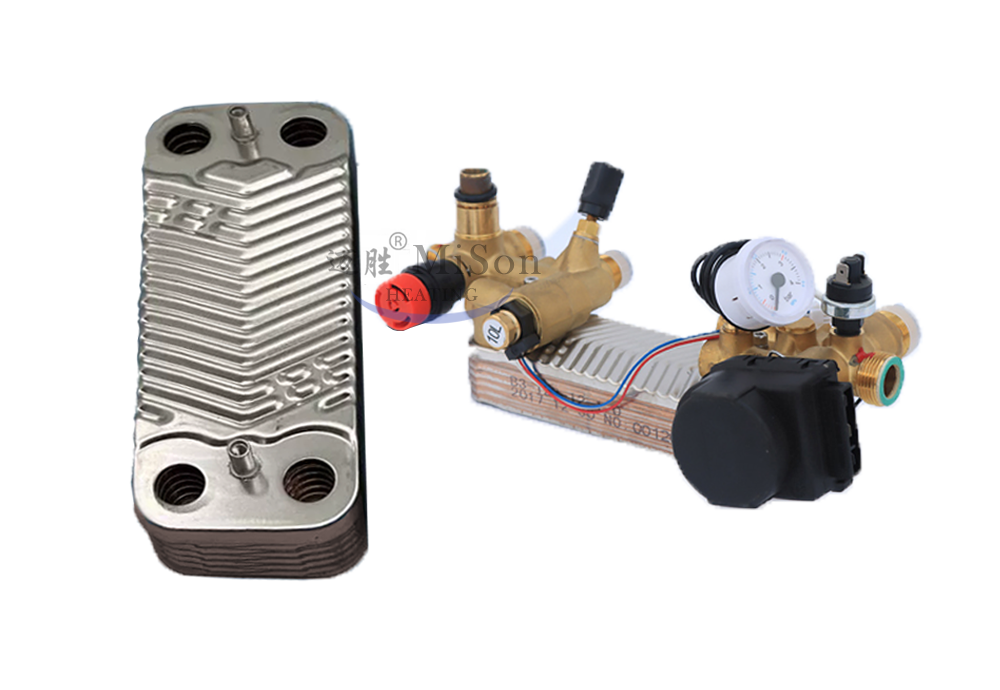

High performance plate heat exchanger ▶Ensure rapid hot water and stable water temperature

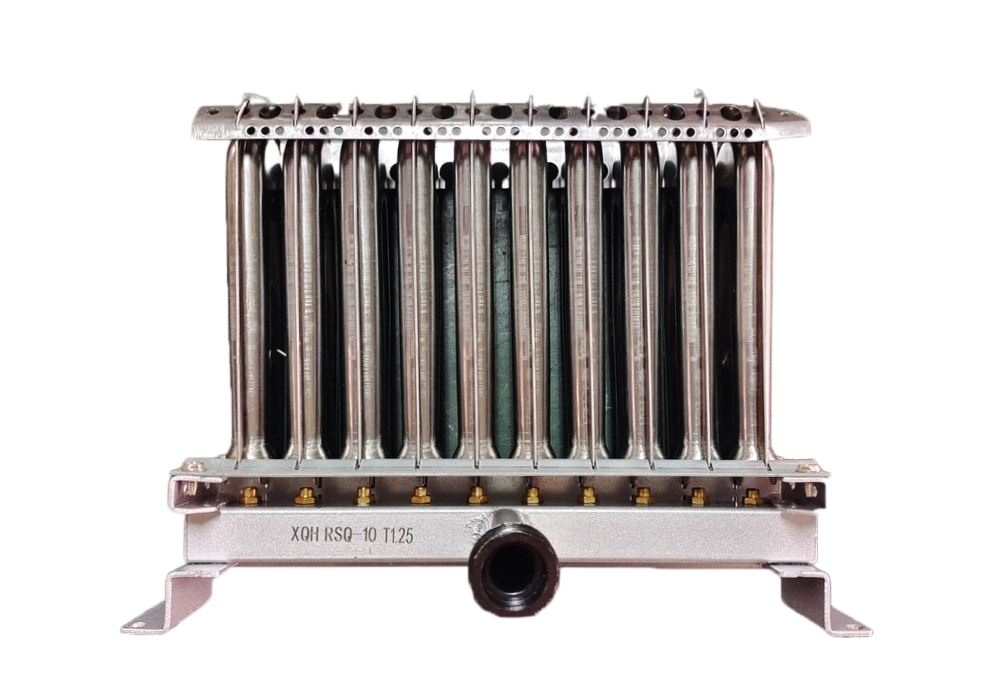

	Burners ▶406 Stainless steel ▶Resistant to corrosion ▶Not easily oxidized ▶Long service life
Safety valvesWind pressure switch ▶Domestic famous brand: nine and air pressure switch ▶Ensure that the equipment can close the gas channel in time when the exhaust air is not smooth, so as to avoid gas leakage and protect personal safety.

Specification

Name		Technical Parameters
Standard		GB25034-2010 GB20665-2015
Model		L1PB20	L1PB24	L1PB28
Gas Type		NG
Rated Gas Pressure		2000Pa
Working Gas Pressure		1500-3000Pa
Gas flow(m³/h)		2	2.4	2.8
Rated Max.Heat Input(KW)		20	24	28
Rated Max.Heat Output(KW)		18	21	25.2
Min. Heat Input(KW)		8	9.6	11.2
Min. Heat Output(KW)		7.2	8.6	10
Rated Power(W)		120	120	140
Voltage/Frequency		220v/50hz
Heating reference area(㎡)		80-120	100-150	130-220
Heating system	Working Water Pressure	0.3Mpa
	Max Temperature	80℃
	Systerm temperature range	30℃-80℃
	Expansion tank (L)	6	6	8
	Heating temperature setting range	30℃-50℃
Hot water	Setting Temperature Range	30℃-65℃
	output rate of hot water	(△t=30k)	(△t=30k)	(△t=30k)
	Min. start-up flow	3L/Min
	Working Water Pressure	0.05-0.8Mpa
Heating Input/Output		G3/4”
Hot water Input/Output		G1/2”
Gas Input		G3/4”
Product Dimensions(mm)		740x400x310	740x400x310	740x460x310
Weight(kg)		33	34	36
Exhaust pipe(mm)		⊘60mmx100mm
Appliance and Water protection grade		IPx4D
